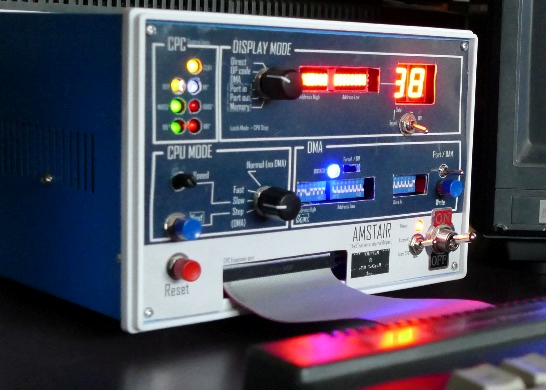

Tool Features

Beyond its Educational interest, AMSTair offers you a way to Hack your games in real time, Debug code / ports, Diagnostic faulty CPC and much more...

* Display CPC control lines via LEDs

* Slow down your Amstrad at chosen speed

* Freeze mode with step by step functionality : Step on each Clock, DMA access, CPU instruction, port read, port write, Memory access

* Select the IO port you want to scan

* Show address lines in binary and data lines in hexadecimal

* Output the selected data to SOUND (Really?!)

* Digiblaster compatible mode

* DMA read or write in each cpu modes : fast, slow, paused

* DMA can r/w Memory and IO ports

* Selection of DMA address and data via switchs

* Selection of Port or Memory address to intercept via switchs

* Force DMA for dead z80

* CPC or external power supply

* Reset Amstrad

This tool is compatible with the Amstrad CPC 464, 646, 6128, 464 Plus and 6128 Plus
